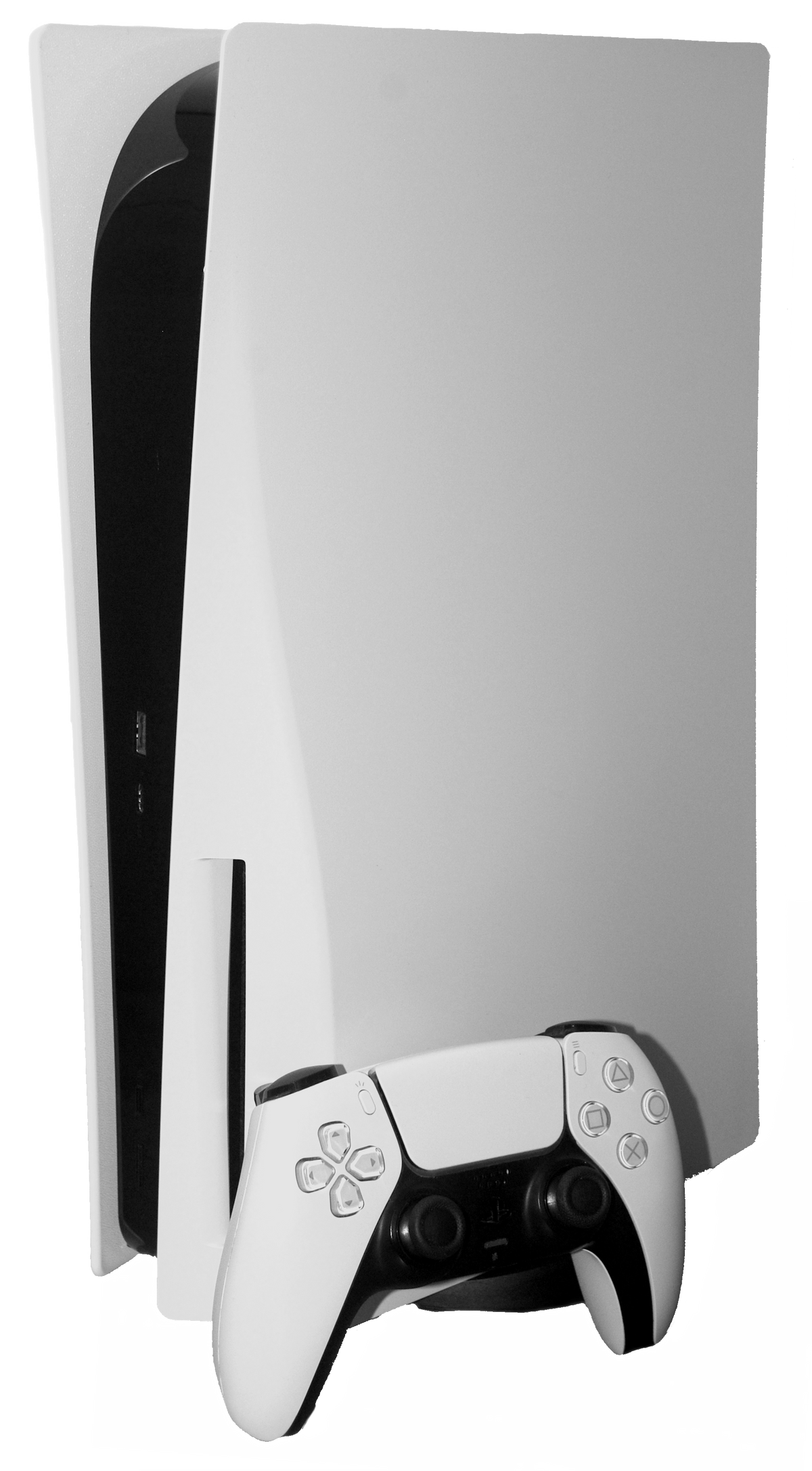

Running out of space on a PlayStation 5 is easy. Solving it is less obvious, because the console treats its built-in storage, an added M.2 SSD, and a USB extended-storage drive very differently. The cheapest-looking option is not always the one that lets you press Play.
The short version is simple: PS5 games run from console storage or a compatible M.2 SSD. A USB extended-storage drive can hold PS5 games, but those games must be copied back before they launch. PS4 games can run directly from USB extended storage. Once that distinction clicks, the rest of the storage menu becomes much less mysterious.
The three places PS5 games can live
Console storage is the built-in drive. It works with PS5 and PS4 games, requires no setup, and is the default installation location. Its biggest drawback is the obvious one: the usable space eventually fills up.
An M.2 SSD is the true expansion option. Sony's current M.2 support guide says a compatible drive can download, store, update, and launch both PS5 and PS4 games. After installation, it behaves like another fast game library inside the console rather than an archive that must be shuffled back and forth.
USB extended storage is the budget-friendly library shelf. It can store PS5 and PS4 games, but Sony's USB guide makes the crucial limitation clear: PS5 games cannot run directly from it. PS4 games can.
M.2 SSD: the option for playing PS5 games
For players who want more games ready to launch, M.2 is the cleanest answer. The PS5 can install new games there, move existing games there, and launch them without first copying them back to the built-in drive.
Do not buy an M.2 drive based on capacity alone. Sony currently specifies a PCIe Gen4 x4 M.2 NVMe SSD with a Key M connector, 250 GB to 8 TB of storage, one of the supported form factors, and effective heat dissipation. Sony recommends a sequential read speed of 5,500 MB/s or faster. M.2 SATA drives are not supported.
The heatsink is not decorative. Sony requires a cooling structure such as a heatsink or heat-transfer sheet, and the drive plus cooling hardware must fit the expansion bay's size limits. Check the current official specification page immediately before buying because a product name that includes “PS5” is not a substitute for matching every requirement.
USB extended storage: cheaper capacity with one big catch
USB storage makes sense when you want a large parking lot for games without paying M.2 prices. Sony currently requires SuperSpeed USB at 5 Gbps or later and a capacity from 250 GB to 8 TB. The drive must connect directly to the console rather than through a USB hub, and only one extended-storage drive can be active at a time.
The catch matters: moving a PS5 game to USB turns it into stored data, not a playable installation. When you want to play, copy it back to console storage or the M.2 SSD. That can still beat downloading a huge game again, especially on a slow or capped internet connection.
PS4 games are different. They can install to USB extended storage and launch from it, which makes an external drive especially useful for a backward-compatible library. If your PS5 holds a mix of generations, keeping PS4 games on USB can reserve the faster internal space for PS5 software.
Game data and save data are not the same thing
Storage conversations get messy when “the game” and “the save” are treated as one file. They are separate. Sony's storage-location chart says PS5 game data can live on USB extended storage or M.2 storage, but PS5 saved data uses console storage or PlayStation Plus cloud storage. A normal USB drive is not a manual PS5-save backup target.
PS4 saves have more flexibility. They can use cloud storage or a regular FAT/exFAT USB drive. Screenshots and video clips can also be copied to a regular USB drive, but that is a separate use from formatting a drive as PS5 extended storage.
Which setup fits you?
- Choose an M.2 SSD if your priority is keeping more PS5 games installed and playable.
- Choose USB extended storage if you want inexpensive bulk storage, keep a large PS4 library, or would rather copy PS5 games than download them again.
- Use both if you want a fast active library on console and M.2 storage plus a larger USB archive.
- Buy neither yet if deleting finished games and reinstalling them later fits your internet connection and play habits.
There is no universal best answer. A smaller, compatible M.2 drive can be more useful than a huge USB drive for someone rotating among current PS5 games. A large USB drive can be the smarter value for someone with years of PS4 purchases and only a few PS5 games in progress.
A safe setup checklist
- Open Settings > Storage and check what is actually consuming space.
- Decide whether you need playable PS5 capacity or inexpensive archive capacity.
- For M.2, compare the exact drive and heatsink dimensions with Sony's current requirements.
- For USB, confirm speed, capacity, and direct-port requirements before formatting.
- Back up anything important on a new drive because formatting erases its existing data.
- Use the PS5's safe-removal command before disconnecting active USB extended storage.
Storage is not glamorous, but it is one of those upgrades you notice every time the console stops asking what to delete. Pick the device around how PS5 and PS4 games actually run, and you will avoid paying for capacity that does not behave the way you expected.

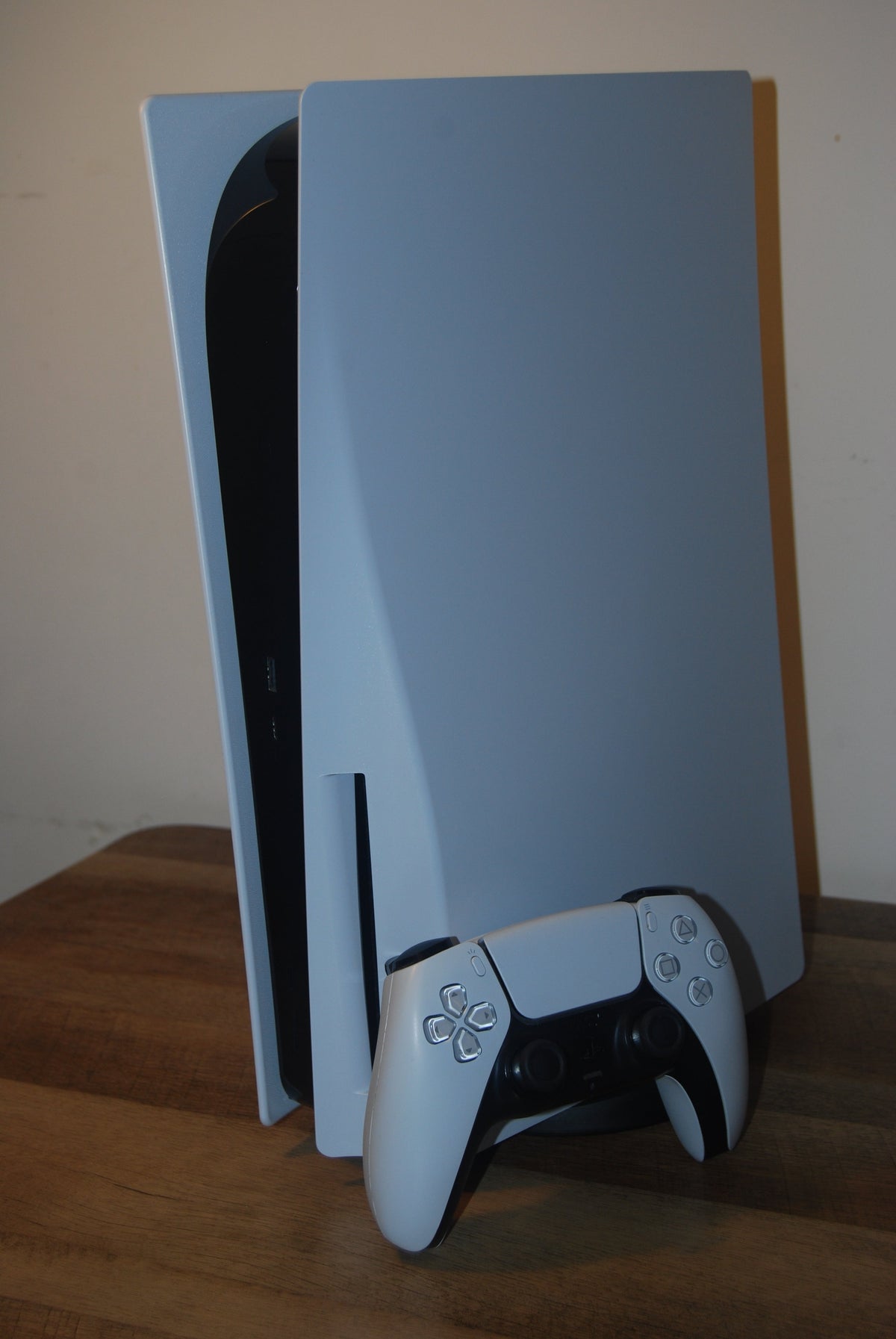

If display quality is the next PS5 setting on your list, read our guide to what QSSR changes on the standard console.
